W37 SERIES

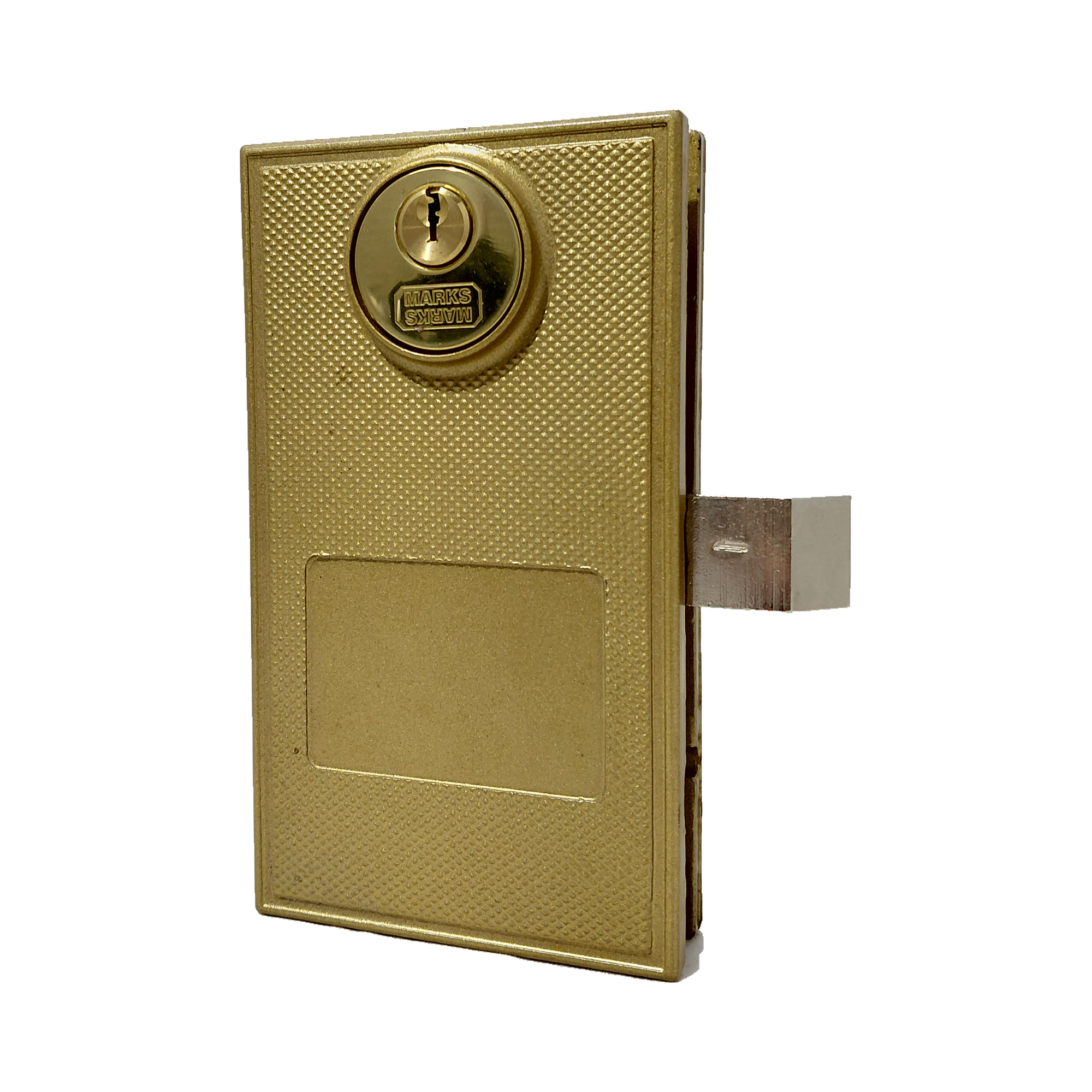

W3700
- Latch projection
- 1-1/8 in
- Channel size
- 1/2 in
Reversible swinging gate lock, available with or without cylinder.
View CADMARKS USA / COMMERCIAL GATE HARDWARE
The right gate lock, clearly specified.
Compare swinging and sliding gate locks, review installation dimensions and inspect CAD before you order. Purchasing is reserved for approved business accounts.
PUBLIC PRODUCT INFORMATION
Specifications and CAD are open for review.Prices, inventory, cart and checkout are available only after JIT Enterprises approves the purchasing company.
15 PRODUCTS / MARKS USA
Product catalog
Start with the way your gate moves, then compare the dimension that determines the correct fit.
W37 SERIES

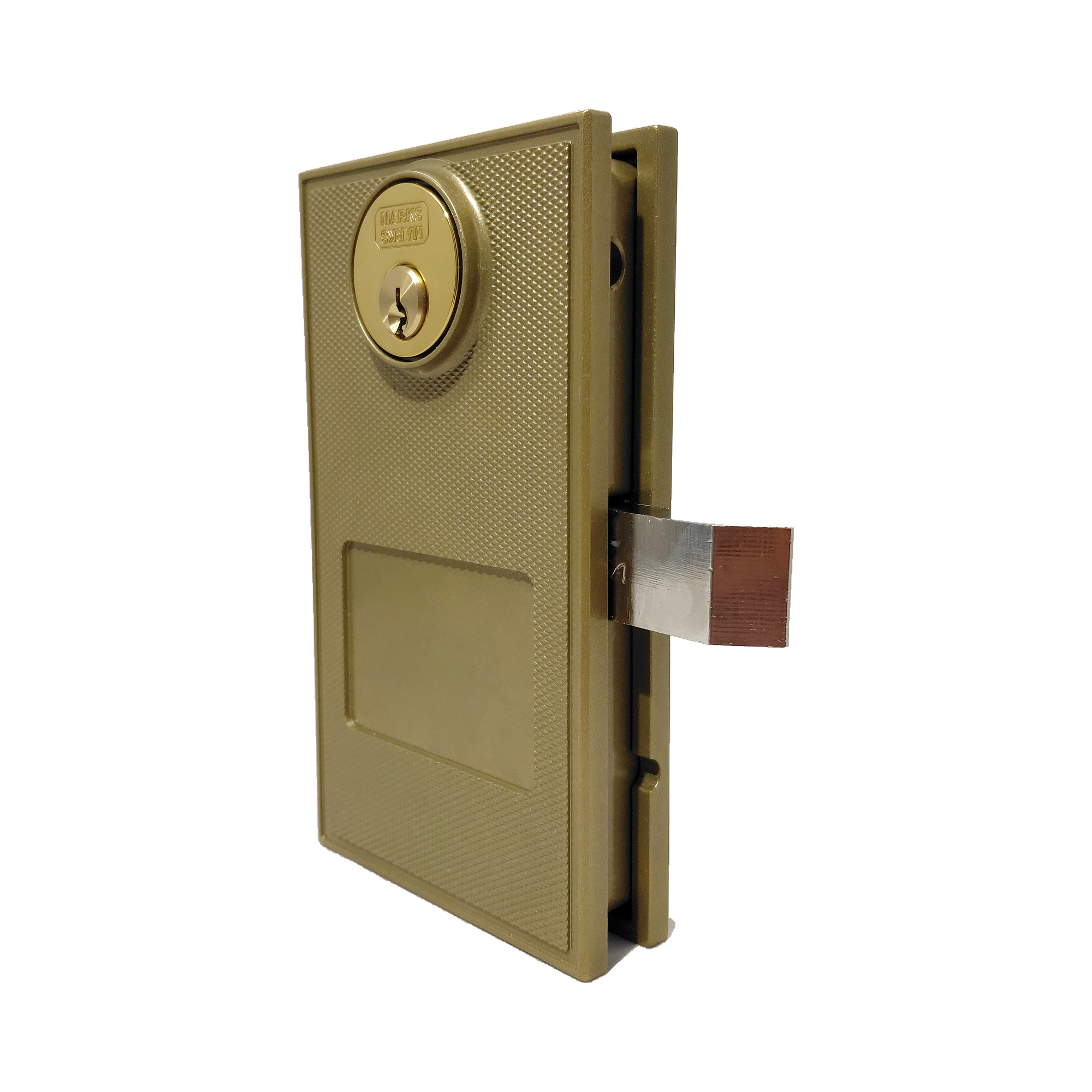

W3710
- Latch projection
- 1-1/4 in
- Channel size
- 5/8 in
Reversible swinging gate lock, available with or without cylinder.
View CAD
W37 SERIES

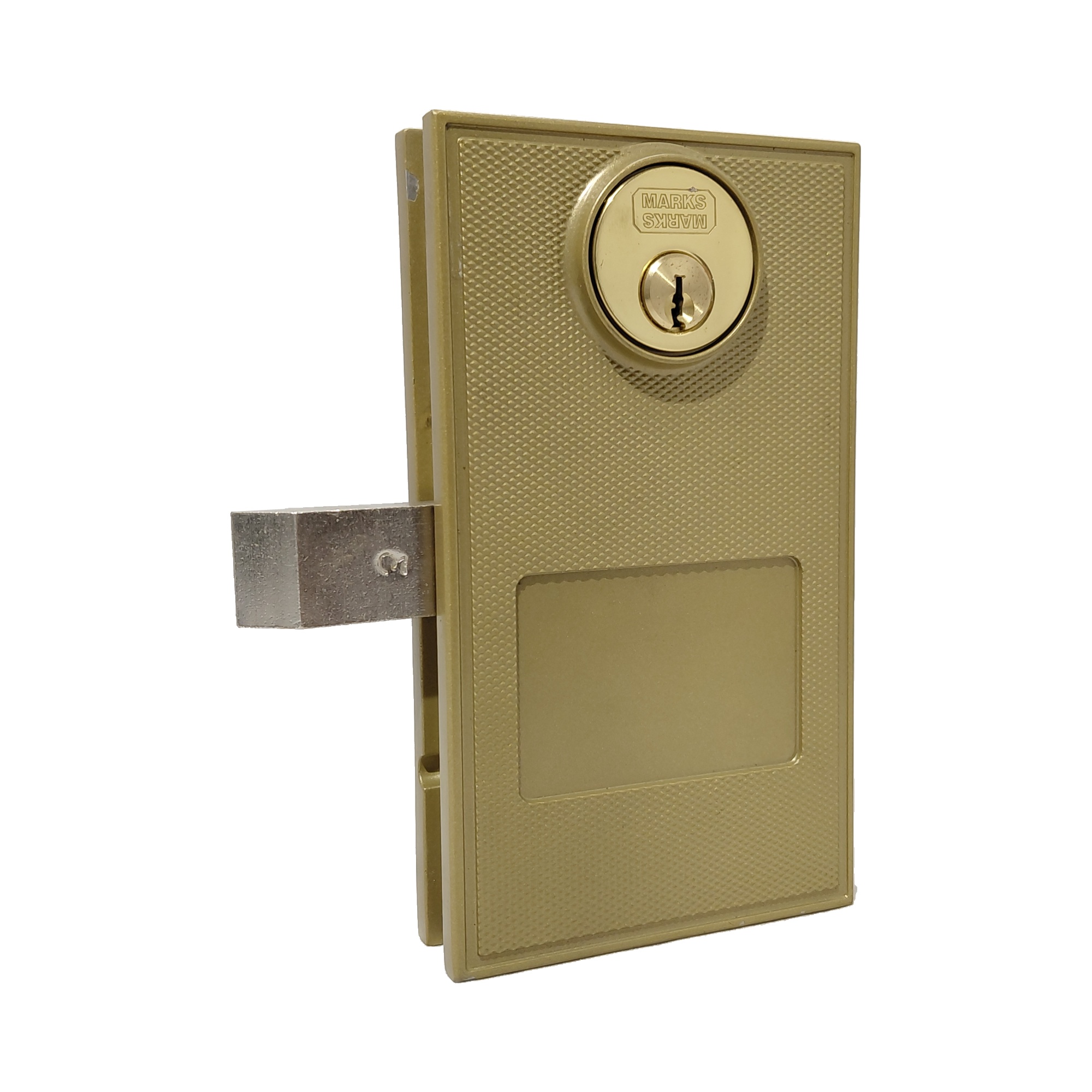

W3720
- Latch projection
- 1-3/8 in
- Channel size
- 3/4 in
Reversible swinging gate lock, available with or without cylinder.
View CAD
W37 SERIES

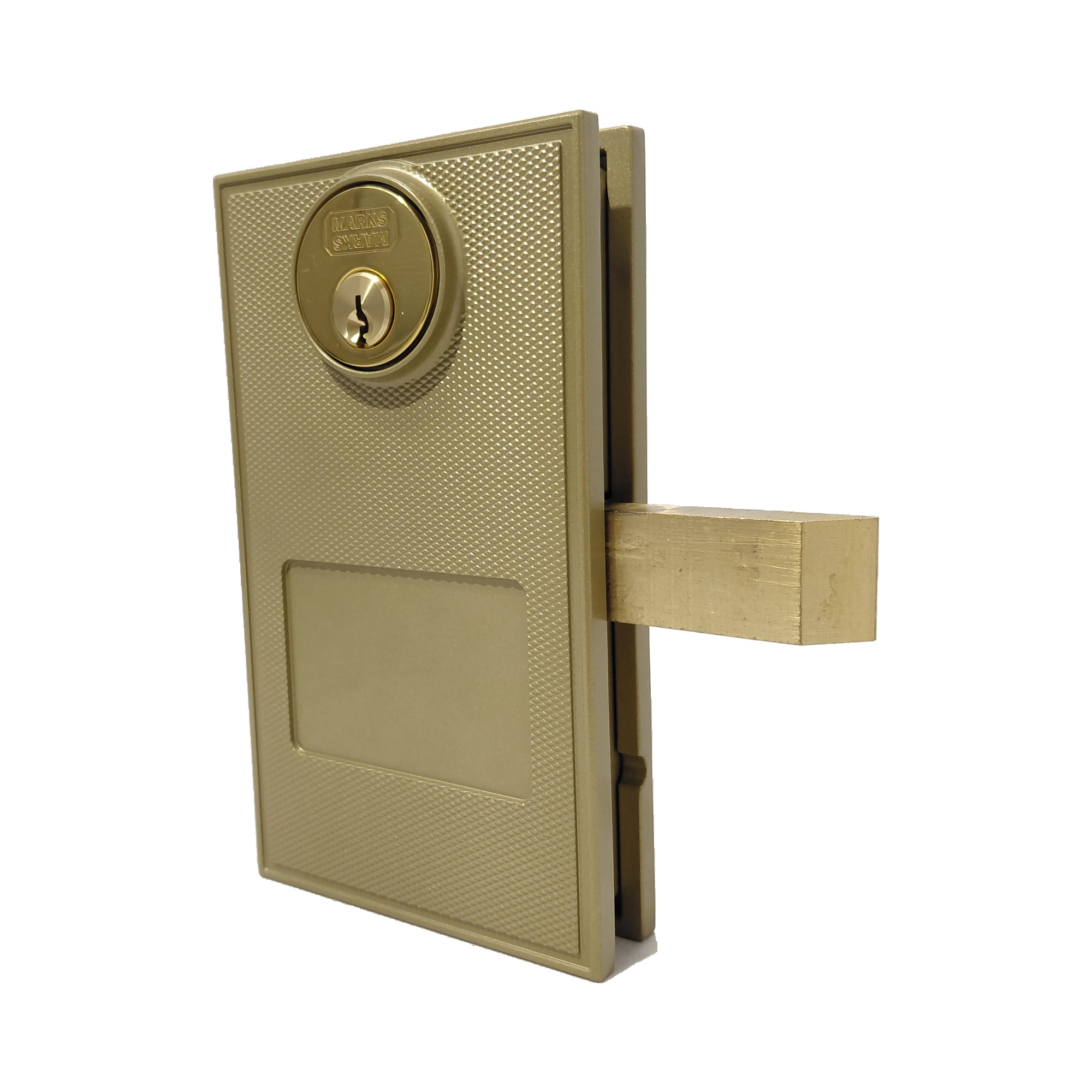

W3730
- Latch projection
- 1-7/8 in
- Channel size
- 1-1/4 in
Reversible swinging gate lock, available with or without cylinder.
View CAD
W38 SERIES

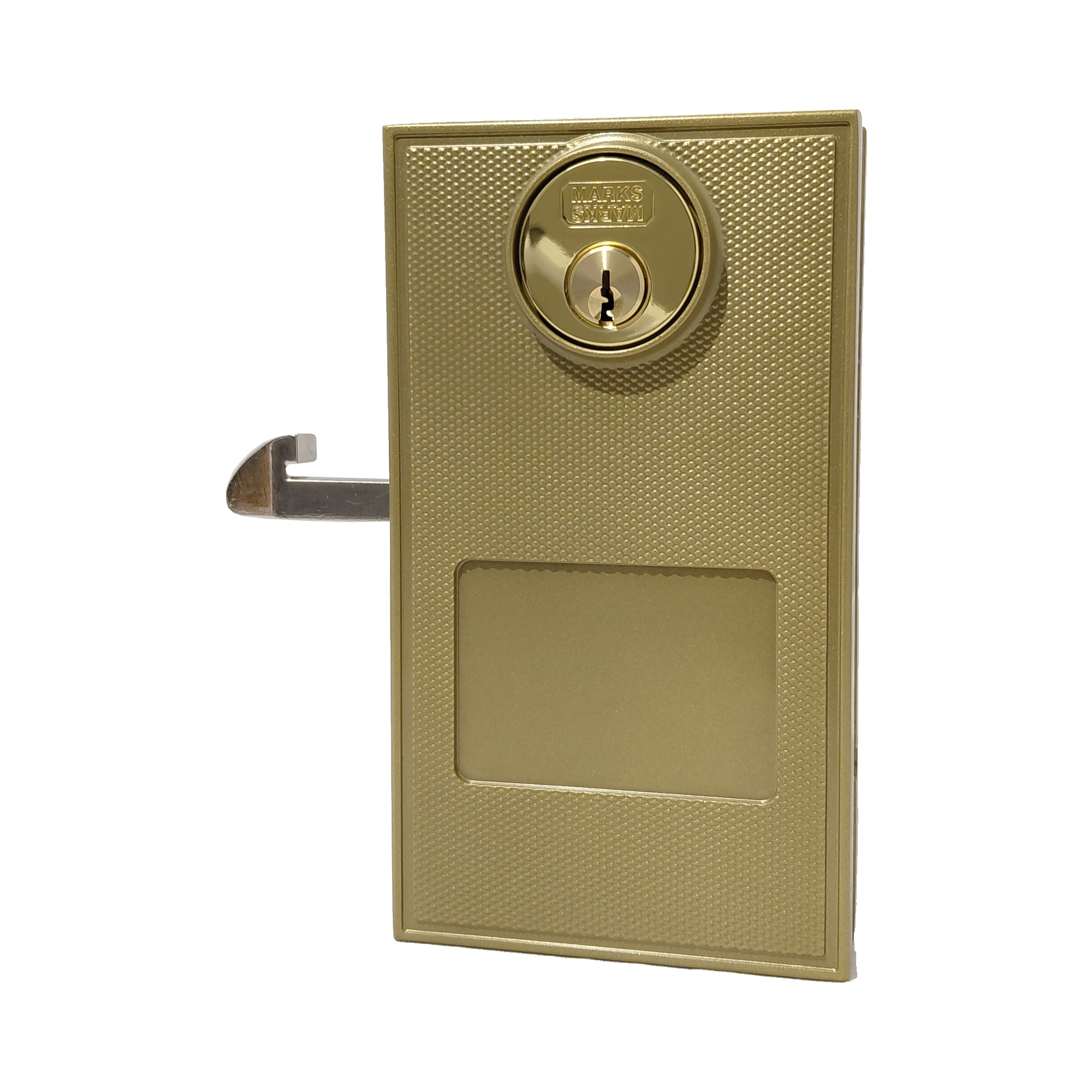

W3800
- Hook gap
- 0.825 in
- Channel size
- 1/2 in
Reversible sliding gate lock, available with or without cylinder.
View CAD
W38 SERIES

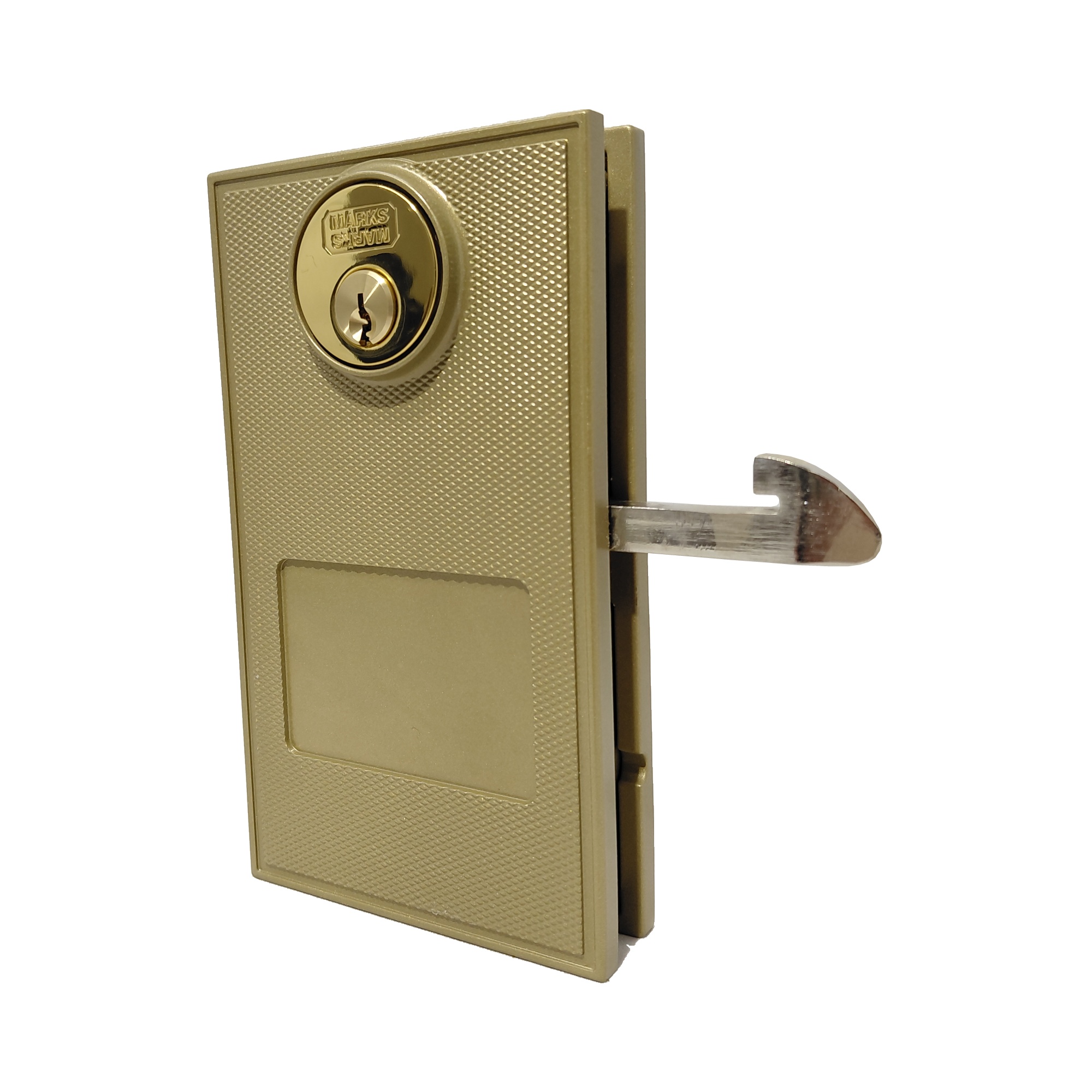

W3810
- Hook gap
- 0.950 in
- Channel size
- 5/8 in
Reversible sliding gate lock, available with or without cylinder.
View CAD
W38 SERIES

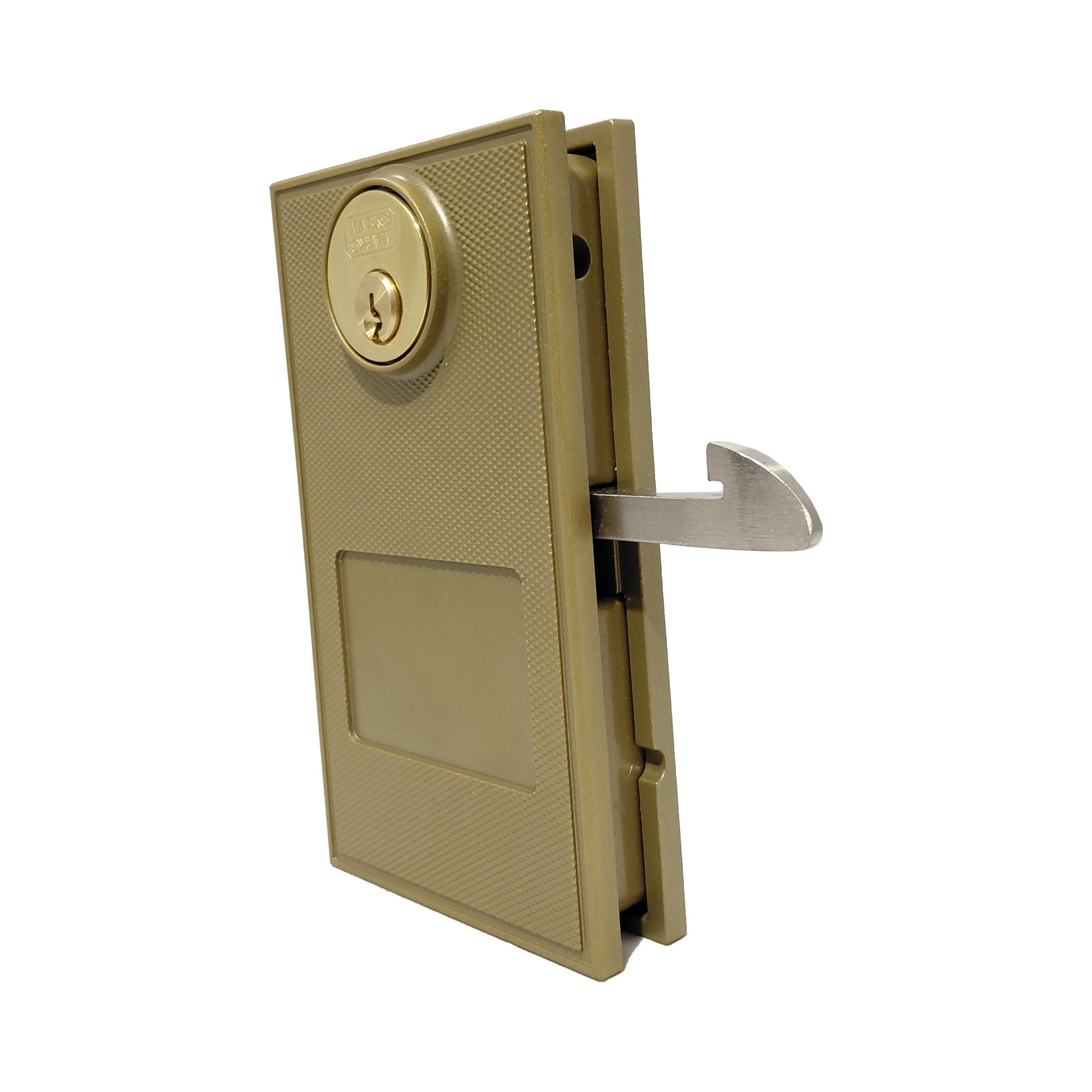

W3820
- Hook gap
- 1.075 in
- Channel size
- 3/4 in
Reversible sliding gate lock, available with or without cylinder.
View CAD
W38 SERIES

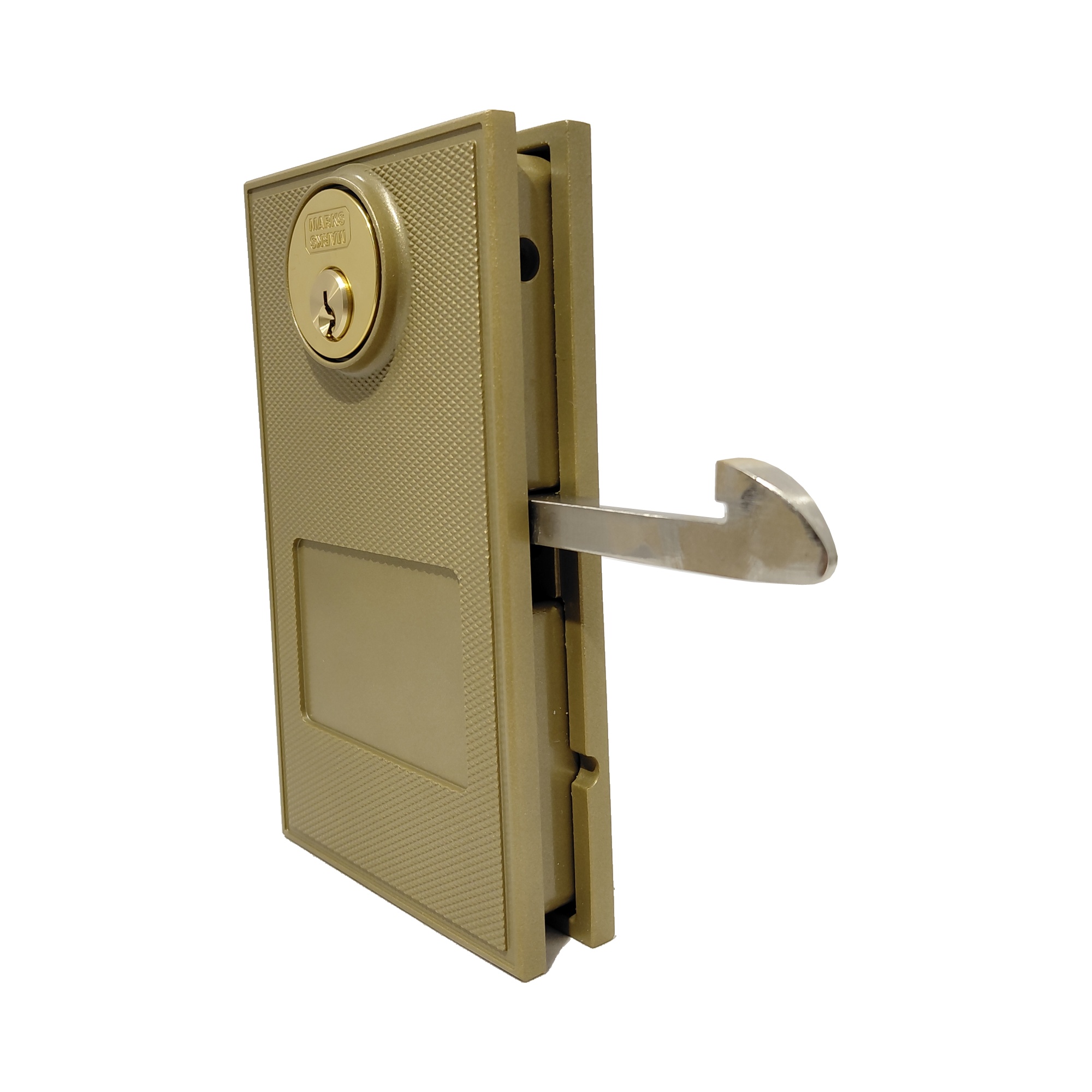

W3830
- Hook gap
- 1.625 in
- Channel size
- 1-1/4 in
Reversible sliding gate lock, available with or without cylinder.
View CAD
ACCESSORY

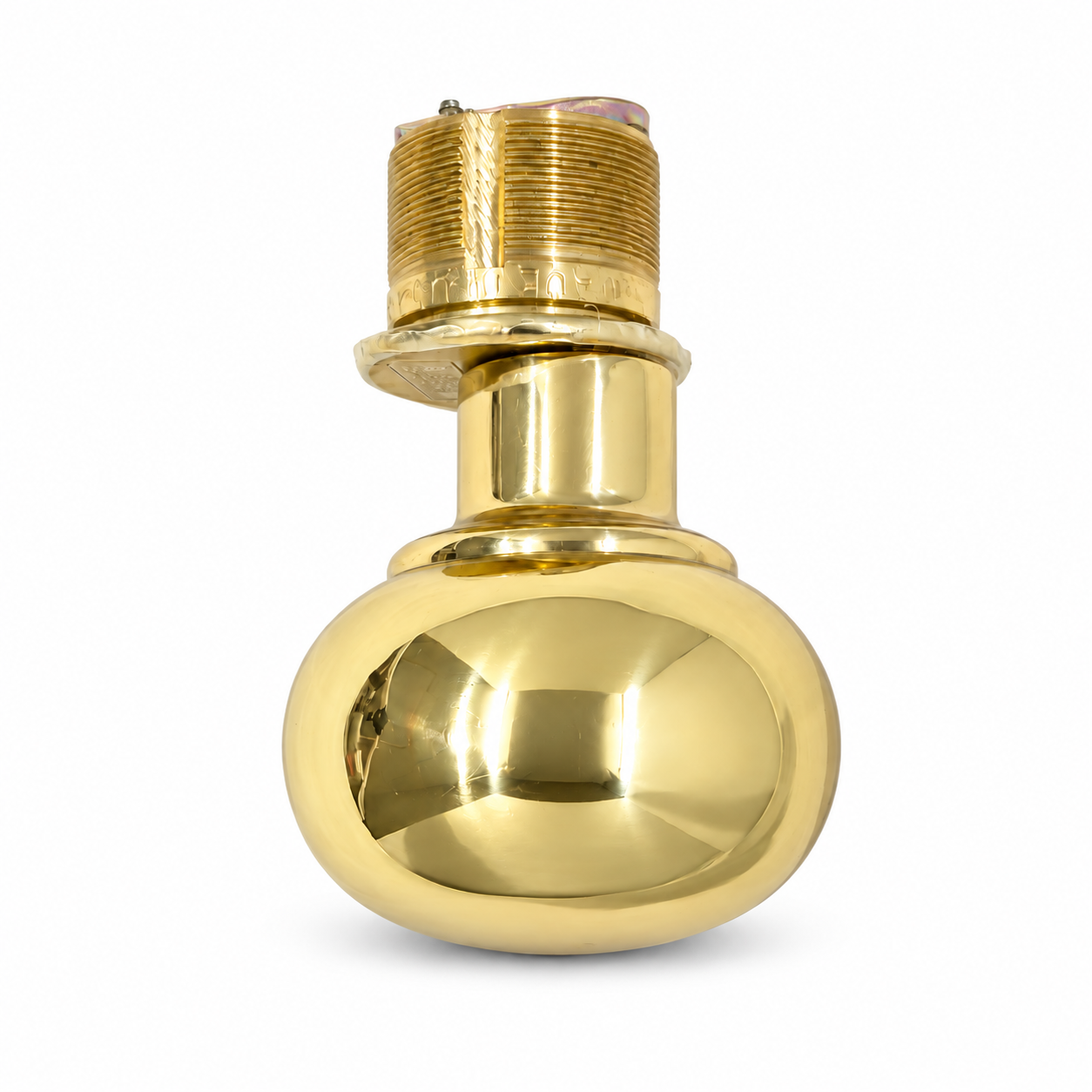

WA9251
Exterior knob assembly for compatible reversible gate locks.
One exterior knob assembly
ACCESSORY

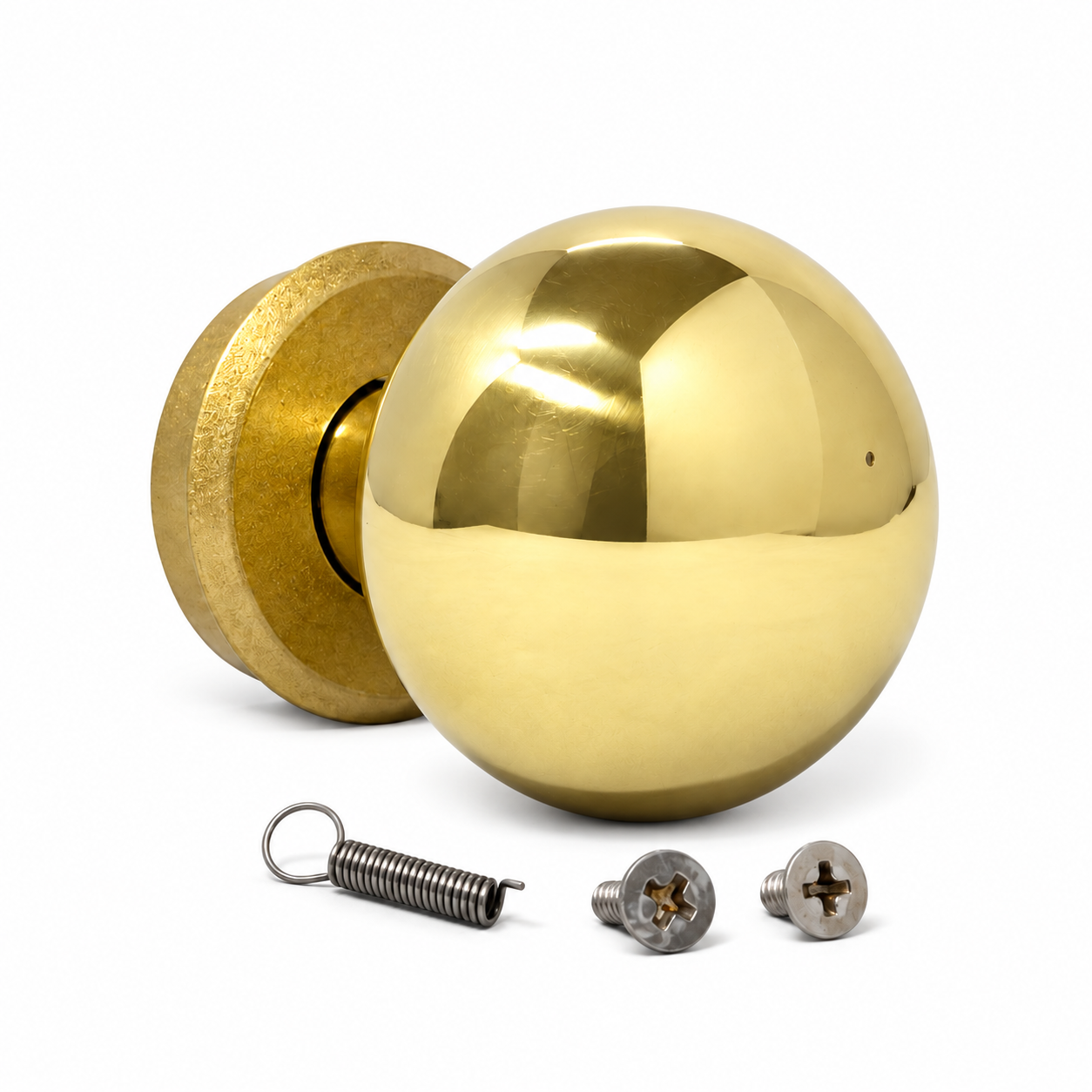

WA9253
Interior knob assembly for compatible reversible gate locks.
Includes two mounting screws and one fork spring
ACCESSORY

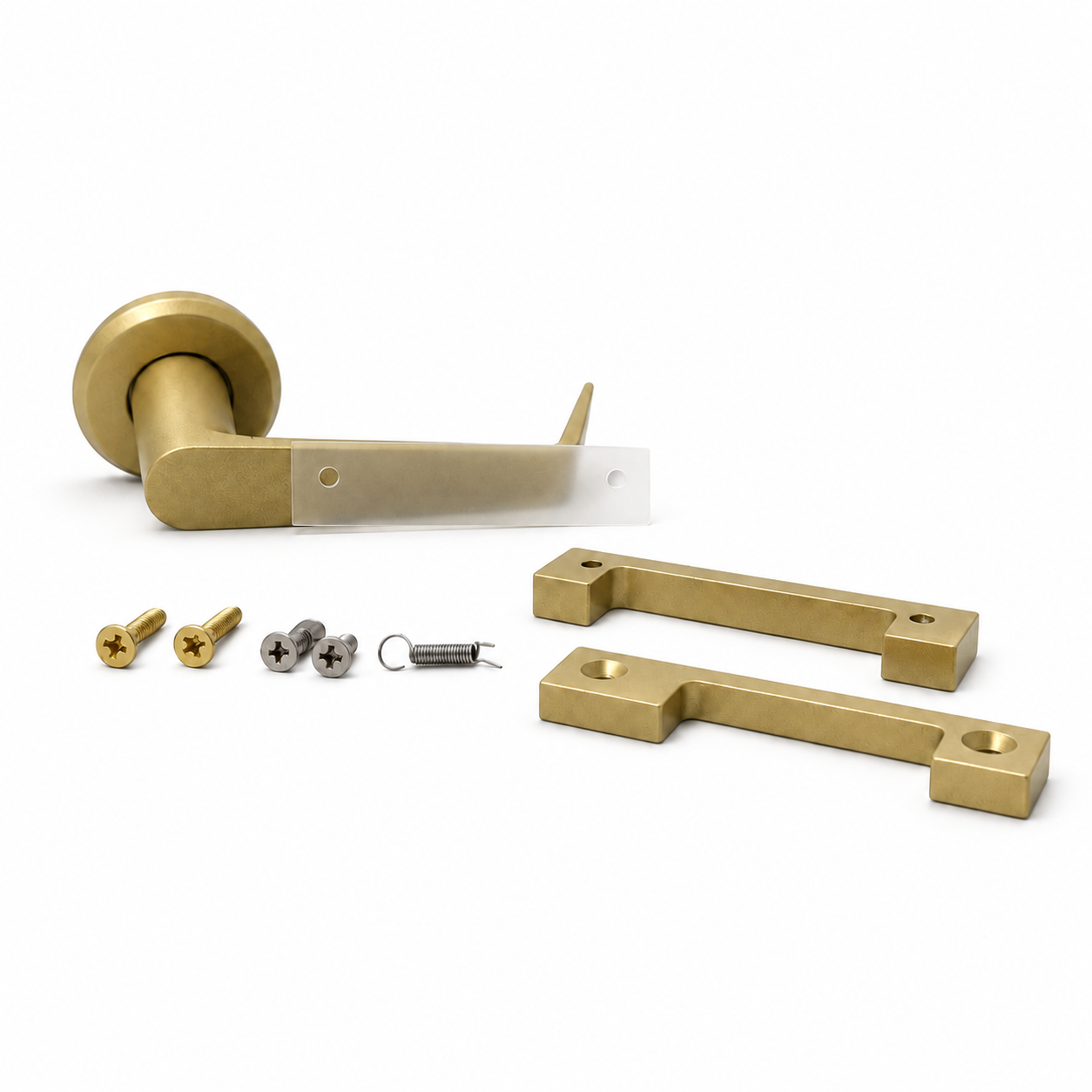

WA9293
Interior lever assembly for compatible swinging and sliding gate locks.
Includes both stop plates, four screws and one fork spring
ACCESSORY

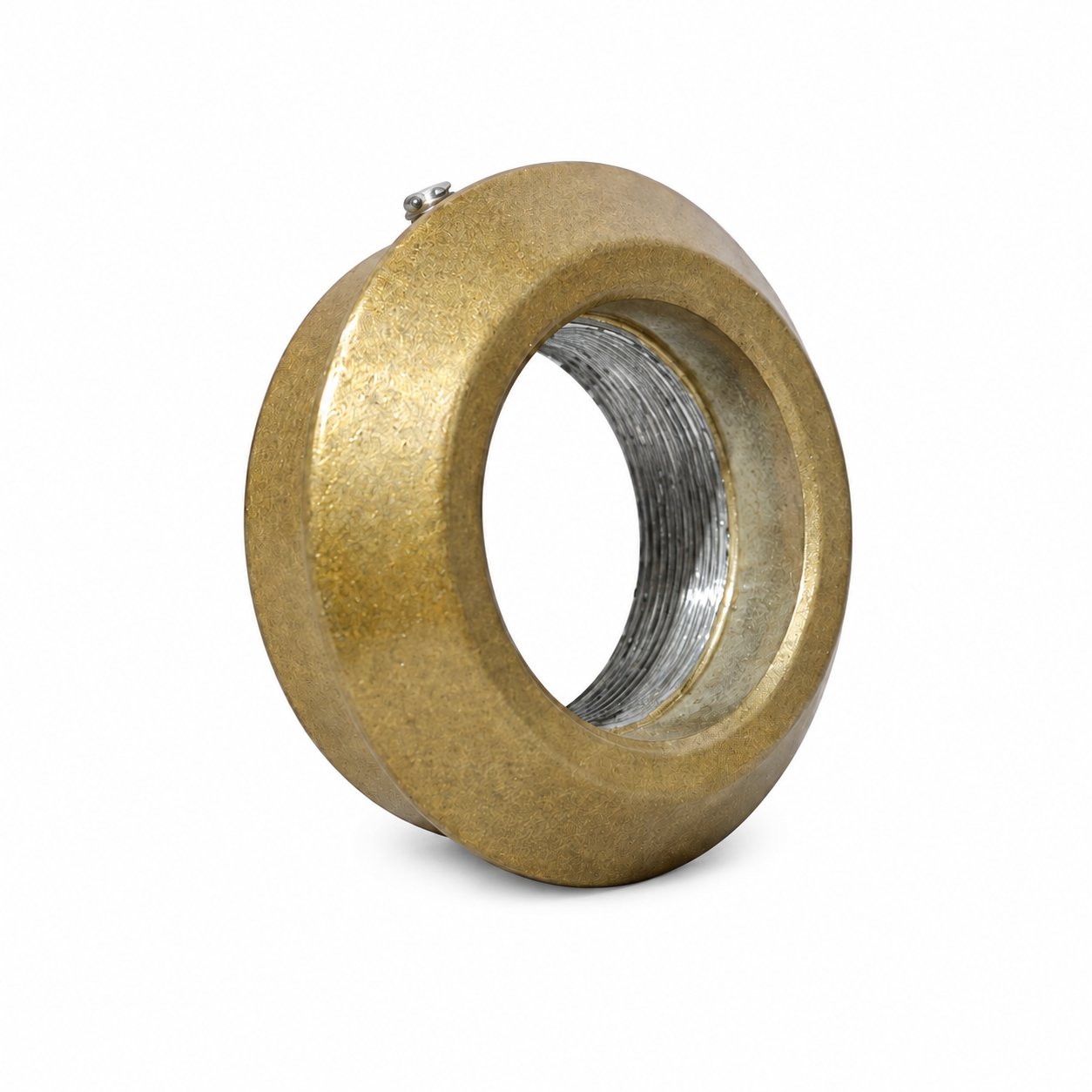

W3751
Double cylinder collar with set screw for compatible reversible gate locks.
Collar and set screw
ACCESSORY

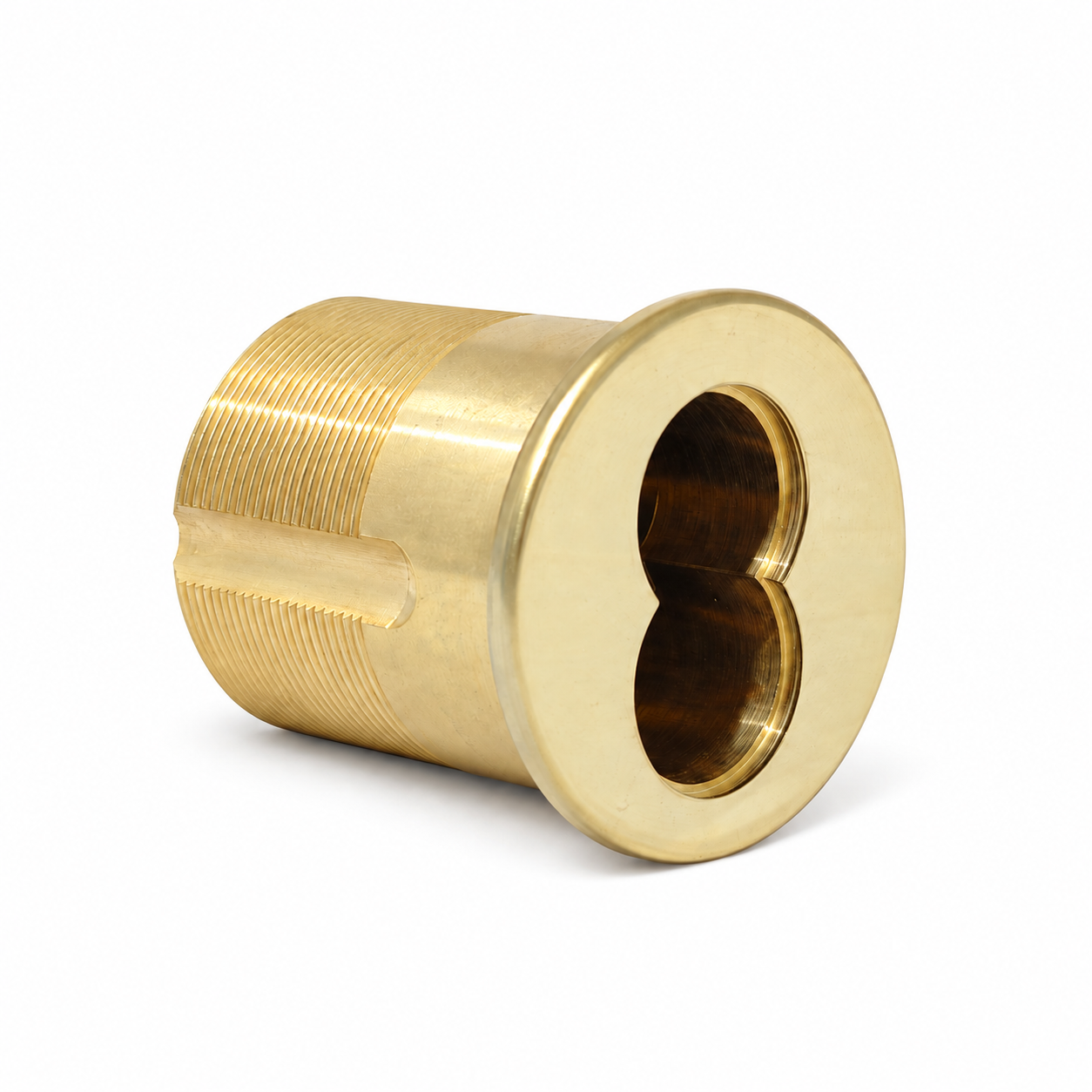

R2183
1-3/8 in mortise SFIC housing for compatible 6- or 7-pin small-format interchangeable cores.
Interchangeable core not included
ACCESSORY

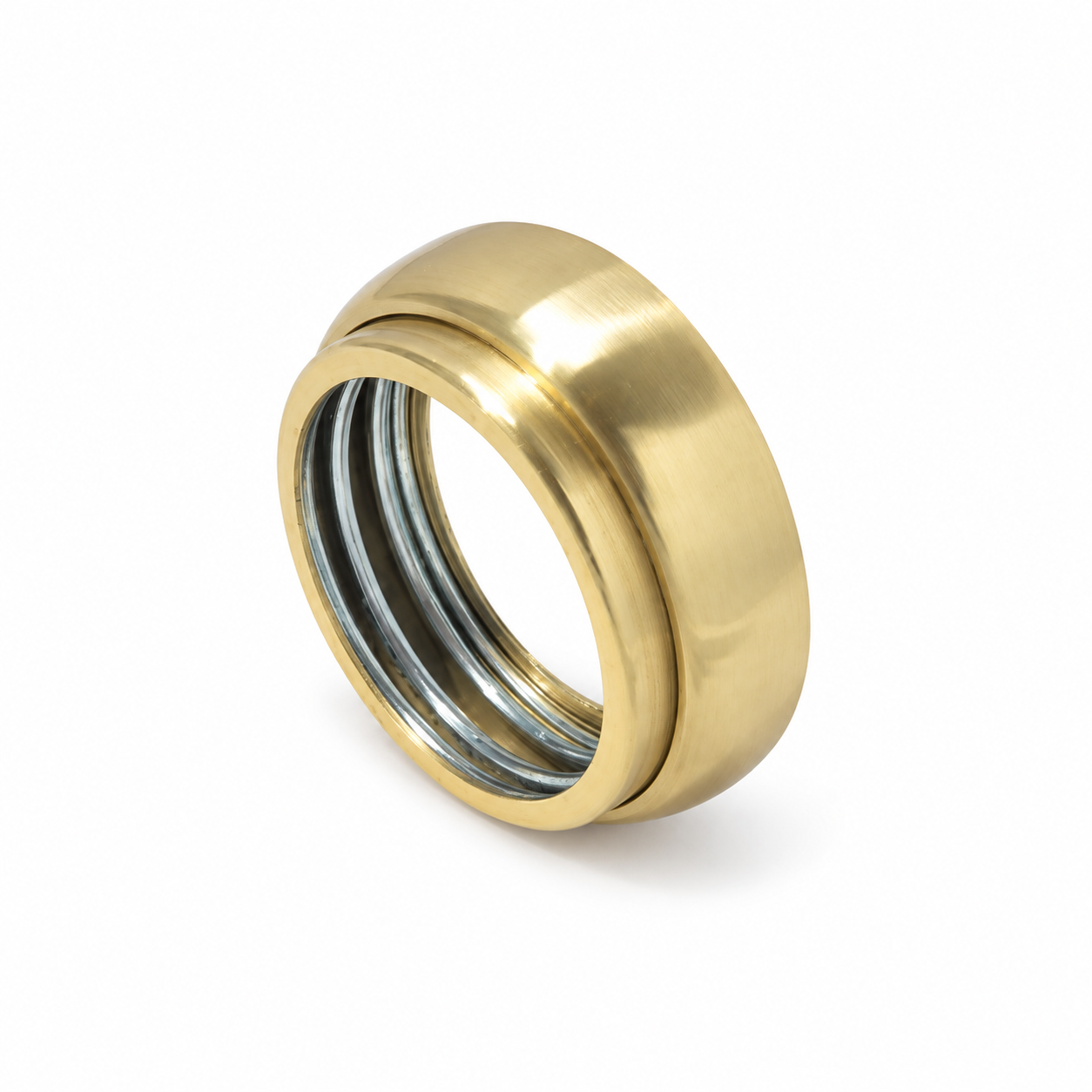

9273/3
7/16 in spring collar for compatible interchangeable-core cylinder installations.
One spring collar
ACCESSORY

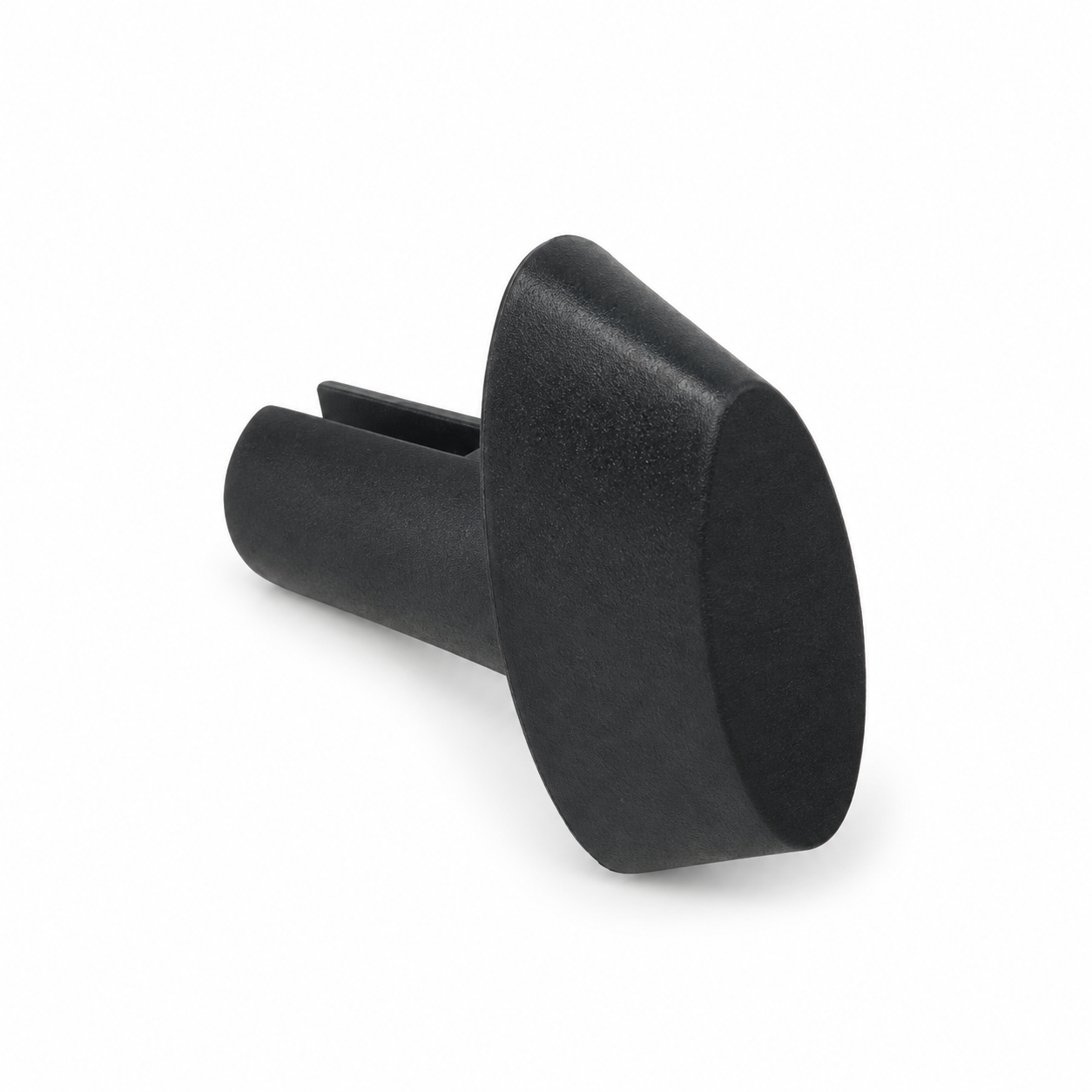

RC1187
Plastic SFIC turn knob for compatible interchangeable-core cylinder configurations.
One plastic turn knobShowing all 15 products.
CAD FILES
Confirm the fit before you order.
Choose the lock model and installation configuration, then download the matching STEP file. CAD access does not require a purchasing account.
Download STEP file
CAD geometry is provided for fit review. Verify field conditions and installation requirements before fabrication.
